In an increasingly complex security landscape, personal protection is paramount. For tactical enthusiasts, law enforcement personnel, and even civilians, armor plates are a crucial component of personal protective equipment. However, faced with a bewildering array of armor plate types, levels, and materials on the market, many find themselves unsure how to choose. This article serves as a comprehensive guide, delving into the differences between various armor plates to help you fully understand how to make an informed decision based on your needs, ultimately selecting the body armor that best meets your protection requirements.
The first and most critical step in choosing an armor plate is understanding its protection level. One of the most authoritative body armor standards globally is set by the National Institute of Justice (NIJ) of the U.S. Department of Justice, specifically NIJ Standard 0101.06. This standard clearly defines the types and velocities of ammunition an armor plate can effectively withstand, ensuring users can select the appropriate level of protection based on potential threats.
NIJ Level IIIA (0101.06): This is the highest protection level for handgun ammunition. Level IIIA plates are typically soft armor, constructed from multiple layers of high-strength synthetic fibers (such as Kevlar® or Dyneema®) pressed together. They effectively stop common 9mm handgun rounds (e.g., 9mm FMJ RN) and .44 Magnum handgun rounds (e.g., .44 Magnum SJHP). These plates are known for their lightweight, flexibility, and comfort, often used in concealed body armor or as inserts for carriers.
Applicable Scenarios: Daily commute, security tasks, low-threat environments, concealed protection.
NIJ Level III (0101.06): This is the entry-level for hard armor plates, primarily designed to stop standard rifle rounds. Level III plates are typically made from ceramics, Ultra-High Molecular Weight Polyethylene (UHMWPE), or composite materials. They effectively defend against mainstream rifle rounds like 7.62x51mm NATO (M80 FMJ). Some Level III plates may offer additional protection against specific armor-piercing rounds, though this is usually marked as "III+" or detailed in the product description.
Applicable Scenarios: Law enforcement patrol, tactical training, high-risk security tasks, general military use.
NIJ Level IV (0101.06): This is the highest level of protection in the current NIJ standard, specifically designed to counter armor-piercing rounds. Level IV plates typically combine ceramics with UHMWPE or other composite materials to maximize protection and minimize weight. They effectively stop high-energy ammunition such as 30-06 M2 AP (Armor Piercing) rounds. These plates provide the most comprehensive rifle round protection, including many types of armor-piercing ammunition.
Applicable Scenarios: Military operations, special forces operations, extremely high-threat areas, scenarios requiring the highest level of protection.
Special Note: Besides NIJ standards, "special" or "independently tested" levels of armor plates may appear on the market. This means these plates may have undergone specific tests beyond NIJ standards or are designed to counter specific, non-standard threats. When choosing such products, always carefully review their detailed test reports to ensure their protective capabilities meet your expectations and specific needs.
Armor plates can be broadly categorized into soft armor and hard armor based on their physical characteristics and primary use.

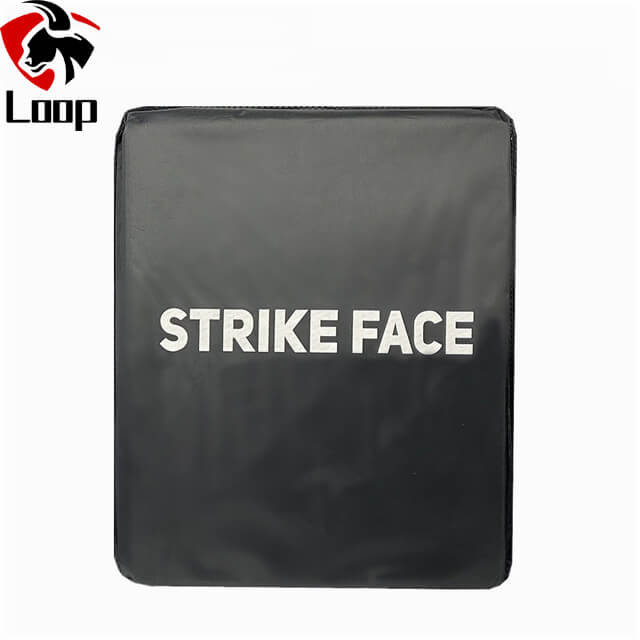

Material Characteristics: Primarily made from multiple layers of high-performance fibers (such as Kevlar®, Dyneema®, Aramid) through special weaving and pressing processes. These materials are known for their high strength, lightweight, and flexibility, effectively dispersing bullet impact forces and preventing penetration.
Protection Level and Features: Primarily offers NIJ Level IIA, II, and IIIA protection, effectively stopping handgun rounds and knife thrusts. They provide excellent wearing comfort, are flexible, and conform perfectly to the body's curves, making them widely used in concealed body armor inserts, bulletproof shirts, and similar applications.
Advantages:
Lightweight and Flexible: Significantly reduces the burden of long-term wear, enhancing mobility.
Comfortable and Conforming: Soft texture allows them to adapt well to the body, improving the wearing experience.
Highly Concealable: Suitable for wearing under regular clothing, making them less noticeable.
Limitations: Cannot withstand direct impacts from rifle ammunition.

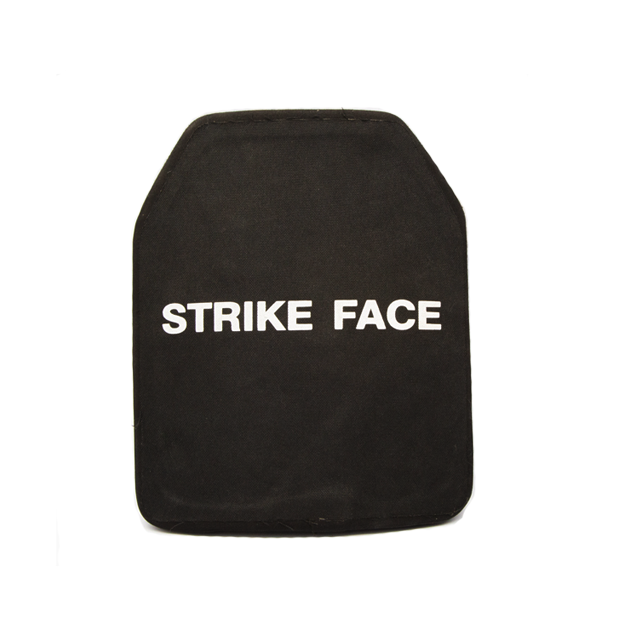

Material Characteristics: Primarily composed of hard, high-density materials, including ceramics (Alumina, Silicon Carbide, Boron Carbide), Ultra-High Molecular Weight Polyethylene (UHMWPE), or composite structures of these materials. They prevent rifle bullet penetration by fragmenting the projectile, absorbing kinetic energy, and dispersing impact forces.
Protection Level and Features: Offers NIJ Level III and NIJ Level IV protection, specifically designed to withstand rifle rounds and even armor-piercing ammunition. Hard armor plates are typically rigid flat plates that need to be inserted into dedicated body armor vests or plate carriers.
Advantages:
Powerful Rifle Round Protection: Capable of effectively stopping high-energy rifle ammunition.
Multi-Hit Capability (Partial): Some hard plates, especially PE and composite plates, have the ability to withstand multiple impacts.
Limitations: Heavier and more rigid than soft armor plates, sacrificing some comfort.
Within hard armor plates, the choice of material directly determines its weight, durability, protection level, and cost. Understanding these differences will help you find the optimal balance between your budget and needs.
Material Principle: PE armor plates leverage the ultra-high tensile strength and oriented molecular chain arrangement of UHMWPE fibers. They are formed by multi-layer cross-plying and high-temperature, high-pressure pressing. Upon bullet impact, the PE fibers effectively stretch and disperse impact energy, preventing penetration.
Advantages:
Extremely Lightweight: This is the greatest advantage of PE plates. For the same protection level, PE plates are typically 30-50% lighter than ceramic plates, significantly reducing the wearer's burden and improving endurance during long operations or patrols.
Multi-Hit Capability: High-quality PE plates often have excellent multi-hit capability, maintaining protective performance even when struck multiple times in the same area.
High Buoyancy: Less dense than water, allowing them to float, which is a unique advantage for water-based operations or amphibious environments.
Impact Resistance: Unlike brittle ceramic plates, PE plates are less prone to cracking when dropped or subjected to blunt force impact.
Disadvantages:
Higher Cost: Manufacturing costs for PE plates are generally higher compared to traditional ceramic or steel plates.
Limited Armor-Piercing Capability: While capable of stopping common rifle rounds, their protection against higher-level armor-piercing rounds (like M2 AP) is not as strong as certain ceramic plates.
Heat Resistance: Their material properties might be affected in extremely high temperatures (e.g., fire environments), but they generally perform stably within normal operating temperature ranges.

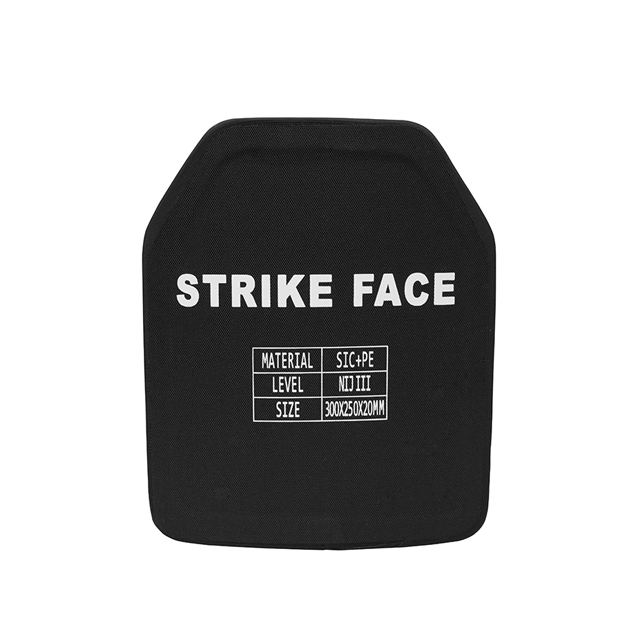

Material Principle: The core of ceramic armor plates is a hard ceramic layer (such as Alumina, Silicon Carbide, Boron Carbide), usually backed by a UHMWPE backer or Aramid fiber. The ceramic layer, with its extreme hardness and brittleness, fragments the bullet upon impact, dispersing and absorbing its kinetic energy. The backer then captures fragments and absorbs residual energy to prevent Backface Deformation (BFD).
Advantages:
Exceptional Armor-Piercing Capability: Especially Silicon Carbide (SiC) and Boron Carbide (B4C) ceramic plates, which excel in stopping high-energy armor-piercing rounds and are the preferred material for NIJ Level IV protection.
High Hardness: Effectively "grinds down" high-velocity projectiles, neutralizing their penetrating power.
Disadvantages:
Heavier: Ceramic plates are generally heavier than PE plates, potentially increasing the burden during prolonged wear.
Brittleness: Ceramics have a certain brittleness, and cracking may occur if subjected to severe impact or drops, affecting protective performance. Once the ceramic layer is compromised, its ballistic capability is significantly reduced, especially in the impacted area.
Single-Hit Limitation: Many ceramic plates, after the first impact, will have their ceramic structure damaged around the hit point, reducing the protective capability of that area if hit again.
Material Principle: Made from high-hardness armor steel (such as AR500, AR600, etc.). Their ballistic principle relies on the steel plate's high hardness and toughness to directly block bullet penetration.
Advantages:
Cost-Effective: Steel plates are generally more affordable than PE or ceramic plates, making them an option for those on a limited budget.
Multi-Hit Capability: Steel plates can withstand multiple impacts without fragmenting easily.
Thin: Often thinner than other armor plate materials.
Disadvantages:
Extremely Heavy: They are the heaviest of all armor plate materials, posing a significant burden and fatigue during prolonged wear, severely impacting mobility.
Spalling Risk: Upon high-velocity impact, bullets striking steel plates can fragment and produce high-energy spall (fragments), which may scatter, causing secondary injury to the wearer (especially the chin and legs) and bystanders. Therefore, they must be used with an Anti-Spall Coating.
Backface Deformation (BFD): The impact force can cause severe deformation on the back of the steel plate. Even if not penetrated, this can lead to serious blunt force trauma to the wearer, potentially life-threatening.
Important Note: Given the potential risks associated with steel plates, we generally recommend prioritizing PE or ceramic armor plates if your budget allows.
Beyond ballistic performance, the shape, curve design, and thickness of an armor plate directly influence its wearing comfort and concealability.
Shape (Cut):
SAPI (Small Arms Protective Insert) Cut: The most common standard rectangular or trapezoidal cut, offering maximum protective coverage, often used for front and back plates.
Shooter's Cut: Features angled cuts at the shoulder and armpit areas, providing more room for arm movement during shooting, enhancing weapon manipulation comfort.
Swimmer's Cut: Has a deeper armpit cut than the shooter's cut, designed specifically for users requiring extensive arm movement (e.g., swimming or climbing), though the protective area is slightly reduced.
Curve:
Single Curve: Has one curvature along the vertical axis, conforming to the chest curve, offering basic comfort.
Multi-Curve: Features curvature along both vertical and horizontal axes, allowing for a more perfect fit to the body's natural three-dimensional contours, providing optimal comfort and fit, reducing pressure, especially suitable for prolonged wear.
Thickness: The thickness of an armor plate directly affects its concealability and mobility. Generally, higher protection levels mean greater plate thickness. However, advancements in modern material technology constantly enable thinner plates while maintaining protective performance.
Choosing the right shape and curve should be based on your specific use scenario and physical needs. For example, daily duty might favor a multi-curve design for comfort, while special forces might require a Shooter's Cut to optimize shooting posture.
Selecting an armor plate is not a "one-size-fits-all" decision. It's a process that requires comprehensive consideration of your specific use scenarios, potential threats, personal physical condition, and budget.
Handgun Threats (9mm, .44Mag, etc.): Prioritize NIJ Level IIIA soft armor vests or inserts. They are lightweight, concealable, and sufficient for these threats.
Standard Rifle Threats (7.62x51mm M80, etc.): At least NIJ Level III hard armor plates are needed. Weigh the balance between PE plates and ceramic plates in terms of weight, cost, and multi-hit capability. If weight-sensitive and budget allows, PE plates are an ideal choice.
Armor-Piercing Threats (30-06 M2 AP, etc.): You must choose NIJ Level IV hard armor plates, typically ceramic composite plates. This is the highest level of protection.
Urban Patrol/Daily Security: Lean towards lightweight, comfort, and concealability, such as Level IIIA soft armor or light Level III PE plates.
Outdoor/Field Operations: Besides ballistic protection, consider durability (resistance to drops, impacts). PE plates excel in this aspect.
Static Sentry/Heavy Fire Engagements: Can tolerate heavier protection; prioritize highest protection level (Level IV) ceramic plates.
Frequent Movement/Running: Lightweight is key, and PE plates will significantly reduce physical exertion.
If you need to wear it for extended periods (hours or even all day), choosing multi-curve, lightweight armor plates is crucial to minimize fatigue and discomfort.
Soft body armor is significantly more comfortable than hard armor plates.
Entry-Level/Limited Budget: Steel plates with anti-spall coating (consider their drawbacks carefully), or some basic Level III ceramic plates.
Mid-Range Budget/Value for Money: High-quality Level III PE plates or standard Level III ceramic plates.
No Budget Limit/Seeking Ultimate Performance: Top-tier lightweight Level III+ or IV PE/Ceramic composite plates.
Choosing the right armor plate is a significant investment that directly relates to your safety. We understand you may have more questions and unique needs. As a professional supplier of tactical gear and body armor, we are committed to providing you with the most authoritative advice and the highest quality products.
One-on-One Expert Consultation: Our team of body armor specialists possesses deep professional knowledge and extensive practical experience. They will provide customized, professional body armor solutions based on your specific situation.
Product Comparison and Recommendation: Leveraging our expertise, we help you compare the performance, weight, advantages, and disadvantages of different products, ensuring you make the most informed decision.
Corporate and Bulk Procurement: For bulk procurement needs from law enforcement agencies, security companies, or military units, we offer highly competitive pricing and exclusive services.
After-Sales Support: A comprehensive after-sales service system ensures you have peace of mind after your purchase.
Don't let complex information hinder you from getting the best protection!
Understanding the protection levels, material characteristics, shape, and thickness of armor plates is fundamental to ensuring you receive adequate protection in complex environments. From lightweight, concealable soft armor vests to heavy-duty ceramic plates capable of stopping armor-piercing rounds, each type of armor plate has its unique value and applicable scenarios. Our goal is to alleviate your confusion during the selection process and provide clear, professional guidance, helping you find the "armor" that best suits you. Remember, choosing body armor is choosing peace of mind and security. We look forward to working with you to build a safe defense!
