When choosing ballistic plates, beyond material (ceramic, boron carbide, UHMWPE, etc.) and protection level, the plate's curvature design (single-curve / multi-curve) has a clear impact on wear comfort, fit, mobility and real-world operational experience. This article systematically explains the differences between single-curve and multi-curve plates, common application scenarios, tactical significance, pros and cons comparison, and gives practical selection advice and procurement tips to help customers decide quickly and improve conversion rates.
Single-curve ballistic plates: the plate surface is curved along a single plane direction (usually vertically or horizontally — a single-axis bend), with a relatively simple profile similar to an arc or channel. They are commonly seen in basic or cost-sensitive products.

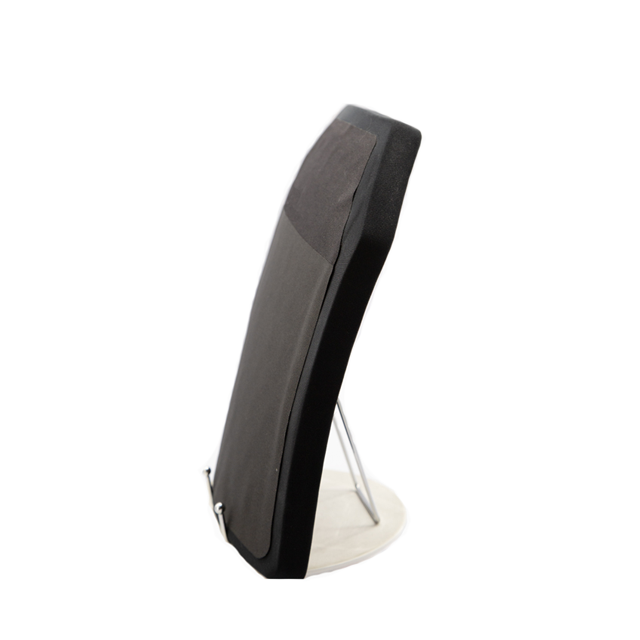

Multi-curve (3D Contour) ballistic plates: the plate surface is curved in multiple directions with a three-dimensional contour (S-shape or human torso-conforming shape). These are more form-fitting to the chest/abdomen curves and are commonly used when higher comfort and fit are required in modern carriers.
Fit & comfort
Multi-curve: better conforms to the torso and side contours, with less rubbing and shifting under load; more comfortable for long wear (long patrols, marches).
Single-curve: simpler shape, fit is generally looser; long-term wear can create gaps or pressure points under the arms or at the sides.
Movement & mobility
Multi-curve: because it matches body shape better, it is less likely to press into the hips or shift during turning, bending, or going prone, improving movement continuity.
Single-curve: when going prone or making rapid low-profile movements, it may feel more restrictive or create protrusion that affects posture.
Coverage & cut
Multi-curve: often allows a more tailored cut with better side coverage; some multi-curve plates provide superior lateral coverage at the same nominal size.
Single-curve: usually more universally sized, but side coverage may need a larger plate to compensate for poorer fit.
Compatibility with carriers
Multi-curve: higher matching requirements for plate carriers and internal pockets — you may need carriers designed for multi-curve plates or minor adjustments to the carrier.
Single-curve: simpler shape is easier to insert into a variety of carriers; generally more universally compatible.
Manufacturing complexity & cost
Multi-curve: forming and lamination are more complex; production cost is typically higher.
Single-curve: mature manufacturing processes and lower cost; good economy at large production volumes.
Ballistic performance
In principle, for the same protection level and same material, surface curvature itself does not significantly change penetration resistance (ballistic level is determined by material and thickness). However, multi-curve plates can sometimes better distribute impact energy and reduce localized backface deformation effects on the body, and they improve force distribution when worn, indirectly enhancing biomechanical safety during real use.
Weight distribution & perceived comfort
Multi-curve plates often allow more reasonable weight distribution closer to the body's center, feeling lighter when worn; a single-curve plate of the same nominal coverage may feel bulkier to achieve the same protection.
Advantages
High versatility and easy replacement;
Usually more economical;
Compatibility with many older carriers;
Maintenance, cutting or simple customization is relatively easy.
Recommended scenarios
Budget-sensitive procurement (large-scale issue);
Units with high turnover or frequent replacement needs;
Vehicle or static emplacement protection where long continuous wear is not required.
Advantages
Better body conformity and superior long-wear comfort;
Less interference with movement and action chains;
Improves individual endurance and operational efficiency in patrols and close operations;
Often better force distribution and backface management at equivalent protection levels.
Recommended scenarios
Special forces, SWAT, and regular patrol units that wear plates for long periods;
High-mobility tasks with frequent posture changes (CQB, urban patrol);
Clients requiring high wearing comfort and durability (high-end individual protection or small-batch specialized procurement).
Increase wear compliance: comfort affects whether personnel actually wear protection — multi-curve plates improve compliance and thus overall survivability.
Reduce interference with movement & improve task efficiency: in short-range assaults, flanking, going prone or vehicle operations, a closer-fit plate reduces the risk of equipment becoming a burden.
Biomechanics & trauma mitigation: curved plates distribute impact more evenly, reducing peak localized forces that can cause internal injury (important when backface deformation occurs but full penetration does not).
Tactical integration: multi-curve designs pair with modern low-profile carriers to form a compact protective system that works well with magazine pouches, chest rigs and comms gear.
Start with the mission set
Long patrols, special operations, constant standing post → lean to multi-curve;
Vehicle-based protection or short-duration static deployment → single-curve may be preferred.
Evaluate carrier compatibility
Check whether your existing or planned plate carrier explicitly supports multi-curve / single-curve plates; if not, prioritize sample insertion and testing.
Consider body ergonomics (size & build)
Slender builds or female operators: multi-curve small sizes often offer better fit; broader builds should choose appropriate cuts and sizes accordingly.
Budget & bulk procurement strategy
For large-scale issue with tight budgets, single-curve often wins on cost and replaceability; for specialized or high-comfort units, favor multi-curve for tactical benefit and wearer satisfaction.
Check ballistic & performance certification
Never trade off materials or layer count: regardless of curve, choose plates with NIJ or equivalent national certifications and multi-hit/backface (BFD) test reports.
Sample wear & trials
Arrange sample fitting and dynamic tests (run, go prone, climb, ride in vehicle) and collect operator feedback before bulk ordering.
Maintenance & retirement policy
Establish rules for retirement or third-party re-testing (e.g., plates struck in action must be retired or tested) and keep usage/wear records to plan replenishment.
Special functional requirements
If you require extreme lightness (full UHMWPE) or maximum penetration resistance (ceramic + PE composite), confirm the achievable minimum thickness and certified protection level after forming a curve — verify with the manufacturer.
Q: Will a multi-curve plate reduce ballistic rating?
A: No. Ballistic rating is primarily determined by material and layer count. However, after forming a curvature the local thickness and lamination directions must meet design specs — choose products with test reports to ensure rating consistency.
Q: My carrier only fits single-curve plates — what can I do?
A: Measure the internal pocket size and consult the manufacturer. Some multi-curve plates offer "shallow curve" or semi-curve options or can be custom-made to balance fit and compatibility.
Q: Are multi-curve plates heavier?
A: Curve alone does not necessarily add weight; weight depends on material and thickness. Many high-end multi-curve plates use UHMWPE composites to achieve lightweight curves while maintaining protection.
Q: For large-scale troop issue, should we choose single-curve or multi-curve?
A: If budgets are tight and missions are vehicle-centric or short-duration, single-curve is often chosen for its universality and cost efficiency. If your forces conduct regular patrols, special ops, or prioritize compliance and comfort, consider mixing multi-curve plates in key units or pilot small batches first.
Single-curve and multi-curve plates each have strengths: single-curve excels in universality, cost and compatibility; multi-curve excels in fit, comfort and mobility. The best procurement strategy is rarely "buy only one type" — instead, mix by mission profile, body-size distribution, carrier compatibility and budget, pilot sample wear tests, then scale up.
