The core of a ballistic plate is its internal materials and layering (ceramics, metals, composite fibers, etc.), but surface finishing determines durability, environmental resistance, maintainability, tactical adaptability and secondary fragmentation behaviour (spall / fragment control). A properly executed surface treatment can extend service life, reduce maintenance cost, optimize camouflage and infrared signature, and improve soldiers’ and officers’ survivability in combat. This article is written for tactical gear and ballistic equipment websites and systematically introduces common ballistic plate surface finish types, their uses and advantages, tactical significance, typical applications, quality and inspection points.
Corrosion & weather resistance: Prevent moisture, salt spray, acids/bases or marine environments from causing metal corrosion or adhesive failure between layers.
Wear & scratch resistance: Reduce outer-layer damage from daily handling, loading/unloading and abrasion to extend service life.
Reduce spall and control fragments: Certain coatings (spall/adhesive coatings) can trap ceramic fragments or disperse fragment energy, reducing secondary injury to the wearer.
Camouflage & low-visibility (VIS / NIR / IR): Surface treatments can reduce visible reflection and near-infrared / thermal signatures, improving concealment in night operations and against UAVs.
Anti-slip & wearing comfort: Rubberized or fabric coverings improve how plates sit in carriers, reduce slippage, and increase wearer comfort.
Functional integration: Examples: electromagnetic shielding, conductive coatings, anti-microbial / self-cleaning finishes, optical markings or anti-counterfeit features.
Aesthetics & brand ID: Custom colors, logos, serial number engraving, etc., for inventory and marketing presentation.
Overview: Polyester/epoxy powder is electrostatically applied and baked to form a film, or weather-resistant spray paints are used.
Advantages: Moderate cost, good adhesion, customizable color/texture, good corrosion and wear resistance.
Disadvantages: High-temperature curing requires attention to substrate thermal tolerance; film can abrade under extreme wear.
Typical uses: Civilian / law-enforcement-looking plates, vehicle armor outer layers, general indoor/vehicle applications.
Overview: Thick-film coatings commonly used for impact resistance, chemical resistance and improved wear.
Advantages: Good weathering and chemical resistance; can act as an adhesive/spall-control layer.
Disadvantages: Adds weight and requires cure time.
Typical uses: Marine / chemical environments and military plates needing spall control.
Overview: Elastic layers applied by spray or dip (e.g., polyurea, thermoplastic elastomers).
Advantages: High impact energy absorption, fragment retention, strong weather resistance, good elasticity; polyurea cures quickly.
Disadvantages: Appears bulky and may affect fit in plate carriers.
Typical uses: Riot shields, armor shells, high-energy absorption applications.
Overview: Coatings incorporating ceramic micro-powders or nano-fillers to harden surfaces and increase high-temperature resistance.
Advantages: Increased surface hardness, wear and heat resistance; can improve initial fragmentation dispersion in some setups.
Disadvantages: Higher cost; if mismatched with backing, can increase surface brittleness.
Typical uses: Armored vehicles, high-heat environments, composite metal substrates.
Overview: Common for aluminum substrates (anodizing) or zinc/nickel plating for steel to prevent corrosion.
Advantages: Improves metal corrosion resistance and wear; anodizing can be colored.
Disadvantages: Not applicable to non-metallic or composite plates.
Typical uses: Aluminum-based protection plates, outer housings, frames.
Overview: Functional thin films deposited via vacuum processes (Physical Vapor Deposition) such as diamond-like carbon.
Advantages: Very high hardness, excellent wear resistance, thin films add minimal weight; can provide special electrical/optical properties.
Disadvantages: High equipment cost, limited scalability for large parts.
Typical uses: High-end components, interface parts, special tactical fittings.
Overview: External skins made from glass/carbon/aramid fibers with resin infusion.
Advantages: Can absorb impact and synergize with internal ceramic/metal layers; good formability for aerodynamic/structural shapes.
Disadvantages: Considerations for thickness/weight and environmental protection of the resin surface.
Typical uses: Armor housings, light armor panels, custom protective shells.

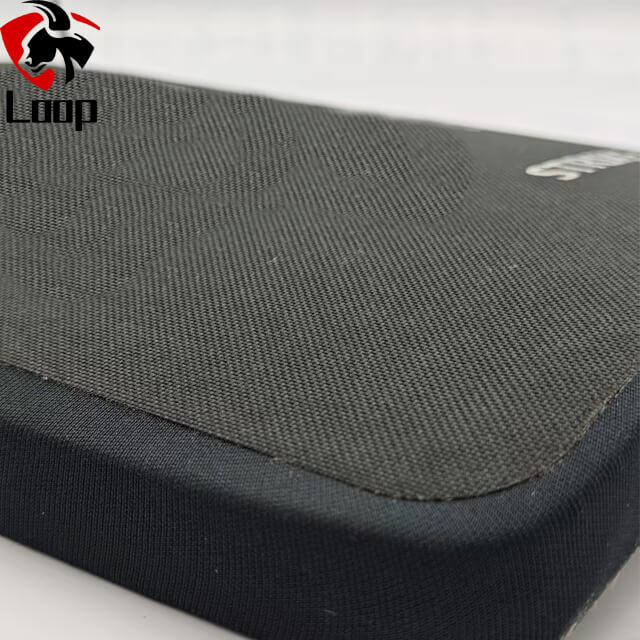

Overview: Cordura, Kevlar or camouflage fabric wrappers placed over plates.
Advantages: Quick replacement, camouflage, noise reduction, wearer comfort and surface protection; add Velcro and ID panels easily.
Disadvantages: Vulnerable to solvents and flame unless treated; some fabrics may absorb water (select waterproof variants).
Typical uses: Plate carrier inserts, soldier-carried plates outer shells.
Overview: Formulations that modify reflectance/emissivity in near-infrared and long-wave infrared bands to lower contrast under night vision / thermal imagery.
Advantages: Significantly improves concealment in night operations and against UAV surveillance.
Disadvantages: Complex formulations; long-term stability must be validated in service.
Typical uses: Special operations, night patrols, VIP protection.
Overview: High-viscosity or viscoelastic coatings applied to ceramic faces or metal backs to capture fragments.
Advantages: Reduces spall-related secondary injuries and improves multi-hit safety.
Disadvantages: May affect heat dissipation and requires aging/durability considerations.
Typical uses: Personal ballistic plates, shields, close-quarters protection.
Overview: Laser-etched serial numbers, UIDs, QR codes or logos on coatings or metal substrates.
Advantages: Traceability, anti-counterfeit, inventory and after-sales management.
Disadvantages: Process must match coating so as not to compromise surface integrity.
Typical uses: Military/police bulk procurement, warranty & lifecycle management.
Increase lifespan & reliability: Corrosion/wear coatings delay adhesive failure between layers and reduce field degradation.
Reduce secondary injury: Adhesive / rubberized layers capture ceramic fragments and lower risk to the wearer, directly affecting survival rates.
Concealment & battlefield suitability: IR/NIR coatings and matte treatments reduce optical/infrared exposure to modern ISR assets.
Lower maintenance & logistics cost: Easy-to-clean, solvent-resistant and scratch-proof surfaces reduce replacement frequency and spare part needs.
Modularity & customisability: Fabric covers or quick-release overlays enable field replacement and mission-specific reconfiguration (light vs heavy modes).
Special forces plate inserts: lightweight plates with IR-suppressive coating + fabric wrap + spall liner.
Armored vehicle windows/side panels: ceramic main board with high-temperature ceramic coating + plated metal frame.
Riot / anti-terror shields: polyurea / rubberized outer layers for high-energy absorption and fragment retention, matte finish to reduce glare.
Law-enforcement portable protection: powder-coated plates + fabric cover + ID panel for patrol / escort use.
Naval / offshore platforms: corrosion-resistant anodizing / PU coatings with edge sealing to resist salt spray and mildew.
When accepting surface treatments, require and verify the following items (include in RFQ / contract):
Coating type & process description: chemical formulation, curing process, and thickness (µm / mm).
Adhesion testing (e.g., ASTM D4541 pull-off, cross-hatch): verify coating-to-substrate bonding.
Salt spray testing (ASTM B117) & cyclic aging: assess marine/humid durability.
Abrasion / dust resistance (Taber abrasion or directional wear tests): evaluate long-term friction loss.
Coating integrity after impact / bending: test whether coating cracks/peels when metallic substrates deform.
IR / NIR spectral response testing: if claiming low-visibility, provide band reflectance/emissivity data and test reports.
Spall / fragment control performance: measure fragment spread and residual penetration after ballistic tests and provide videos/reports.
Chemical resistance: resistance to oil, solvents, fuels.
Thermal cycling & heat resistance: high/low temperature cycles & thermal shock.
Surface hardness & scratch testing: pencil hardness, Mohs, or instrument measures.
Q: Will a surface finish change the ballistic rating?
A: Generally it will not reduce the ballistic rating, but improper finishes (excessive / overly rigid coatings or hard welded attachments) can change load distribution or edge stresses. Finish processes should be confirmed with the manufacturer and ballistic engineers.
Q: Do rubberized coatings add a lot of weight?
A: They do add mass depending on thickness and material, but the trade-off for fragment control and durability is often acceptable in many scenarios.
Q: How to choose finishes for marine use?
A: Prefer polyurea / PU / anodizing or salt-spray certified coatings and apply edge sealing to prevent moisture ingress.
Surface finishing of ballistic plates is not a mere cosmetic step — it directly affects plate availability and survivability under extreme environments and repeated impacts.
