Choosing the right armor plate is one of the most important decisions when building a reliable tactical protection system. Whether for military use, law enforcement, private security, training, or personal protection, armor plates directly affect protection capability, mobility, comfort, and long-term usability.
However, many buyers are overwhelmed by the large number of options available on the market today. Different protection levels, materials, weights, shapes, and plate structures all have their own advantages and limitations. Understanding these differences is the key to selecting armor plates that truly match your operational needs rather than simply choosing the most expensive or heaviest option.
This guide explains the most important factors to consider when choosing armor plates, including protection levels, materials, comfort, weight, plate cuts, mission applications, and compatibility with tactical gear systems.
The first and most critical step in choosing an armor plate is understanding its protection level. One of the most authoritative body armor standards globally is set by the National Institute of Justice (NIJ) of the U.S. Department of Justice, specifically NIJ Standard 0101.06. This standard clearly defines the types and velocities of ammunition an armor plate can effectively withstand, ensuring users can select the appropriate level of protection based on potential threats.
NIJ Level IIIA (0101.06): This is the highest protection level for handgun ammunition. Level IIIA plates are typically soft armor, constructed from multiple layers of high-strength synthetic fibers (such as Kevlar® or Dyneema®) pressed together. They effectively stop common 9mm handgun rounds (e.g., 9mm FMJ RN) and .44 Magnum handgun rounds (e.g., .44 Magnum SJHP). These plates are known for their lightweight, flexibility, and comfort, often used in concealed body armor or as inserts for carriers.
Applicable Scenarios: Daily commute, security tasks, low-threat environments, concealed protection.
NIJ Level III (0101.06): This is the entry-level for hard armor plates, primarily designed to stop standard rifle rounds. Level III plates are typically made from ceramics, Ultra-High Molecular Weight Polyethylene (UHMWPE), or composite materials. They effectively defend against mainstream rifle rounds like 7.62x51mm NATO (M80 FMJ). Some Level III plates may offer additional protection against specific armor-piercing rounds, though this is usually marked as "III+" or detailed in the product description.
Applicable Scenarios: Law enforcement patrol, tactical training, high-risk security tasks, general military use.
NIJ Level IV (0101.06): This is the highest level of protection in the current NIJ standard, specifically designed to counter armor-piercing rounds. Level IV plates typically combine ceramics with UHMWPE or other composite materials to maximize protection and minimize weight. They effectively stop high-energy ammunition such as 30-06 M2 AP (Armor Piercing) rounds. These plates provide the most comprehensive rifle round protection, including many types of armor-piercing ammunition.
Applicable Scenarios: Military operations, special forces operations, extremely high-threat areas, scenarios requiring the highest level of protection.
Although not officially recognized as a separate NIJ category, Level III+ plates are commonly used in the tactical market to indicate enhanced rifle protection against higher-velocity threats or special rounds.
These plates are popular among users seeking:
Improved rifle threat resistance
Moderate weight
Better mobility than Level IV systems
Armor plates can be broadly categorized into soft armor and hard armor based on their physical characteristics and primary use.
Material Characteristics: Primarily made from multiple layers of high-performance fibers (such as Kevlar®, Dyneema®, Aramid) through special weaving and pressing processes. These materials are known for their high strength, lightweight, and flexibility, effectively dispersing bullet impact forces and preventing penetration.
Protection Level and Features: Primarily offers NIJ Level IIA, II, and IIIA protection, effectively stopping handgun rounds and knife thrusts. They provide excellent wearing comfort, are flexible, and conform perfectly to the body's curves, making them widely used in concealed body armor inserts, bulletproof shirts, and similar applications.
Advantages:
Lightweight and Flexible: Significantly reduces the burden of long-term wear, enhancing mobility.
Comfortable and Conforming: Soft texture allows them to adapt well to the body, improving the wearing experience.
Highly Concealable: Suitable for wearing under regular clothing, making them less noticeable.
Limitations: Cannot withstand direct impacts from rifle ammunition.
Material Characteristics: Primarily composed of hard, high-density materials, including ceramics (Alumina, Silicon Carbide, Boron Carbide), Ultra-High Molecular Weight Polyethylene (UHMWPE), or composite structures of these materials. They prevent rifle bullet penetration by fragmenting the projectile, absorbing kinetic energy, and dispersing impact forces.
Protection Level and Features: Offers NIJ Level III and NIJ Level IV protection, specifically designed to withstand rifle rounds and even armor-piercing ammunition. Hard armor plates are typically rigid flat plates that need to be inserted into dedicated body armor vests or plate carriers.
Advantages:
Powerful Rifle Round Protection: Capable of effectively stopping high-energy rifle ammunition.
Multi-Hit Capability (Partial): Some hard plates, especially PE and composite plates, have the ability to withstand multiple impacts.
Limitations: Heavier and more rigid than soft armor plates, sacrificing some comfort.
Within hard armor plates, the choice of material directly determines its weight, durability, protection level, and cost. Understanding these differences will help you find the optimal balance between your budget and needs.
Material Principle: PE armor plates leverage the ultra-high tensile strength and oriented molecular chain arrangement of UHMWPE fibers. They are formed by multi-layer cross-plying and high-temperature, high-pressure pressing. Upon bullet impact, the PE fibers effectively stretch and disperse impact energy, preventing penetration.
Advantages:
Extremely Lightweight: This is the greatest advantage of PE plates. For the same protection level, PE plates are typically 30-50% lighter than ceramic plates, significantly reducing the wearer's burden and improving endurance during long operations or patrols.
Multi-Hit Capability: High-quality PE plates often have excellent multi-hit capability, maintaining protective performance even when struck multiple times in the same area.
High Buoyancy: Less dense than water, allowing them to float, which is a unique advantage for water-based operations or amphibious environments.
Impact Resistance: Unlike brittle ceramic plates, PE plates are less prone to cracking when dropped or subjected to blunt force impact.
Disadvantages:
Higher Cost: Manufacturing costs for PE plates are generally higher compared to traditional ceramic or steel plates.
Limited Armor-Piercing Capability: While capable of stopping common rifle rounds, their protection against higher-level armor-piercing rounds (like M2 AP) is not as strong as certain ceramic plates.
Heat Resistance: Their material properties might be affected in extremely high temperatures (e.g., fire environments), but they generally perform stably within normal operating temperature ranges.
Material Principle: The core of ceramic armor plates is a hard ceramic layer (such as Alumina, Silicon Carbide, Boron Carbide), usually backed by a UHMWPE backer or Aramid fiber. The ceramic layer, with its extreme hardness and brittleness, fragments the bullet upon impact, dispersing and absorbing its kinetic energy. The backer then captures fragments and absorbs residual energy to prevent Backface Deformation (BFD).
Advantages:
Exceptional Armor-Piercing Capability: Especially Silicon Carbide (SiC) and Boron Carbide (B4C) ceramic plates, which excel in stopping high-energy armor-piercing rounds and are the preferred material for NIJ Level IV protection.
High Hardness: Effectively "grinds down" high-velocity projectiles, neutralizing their penetrating power.
Disadvantages:
Heavier: Ceramic plates are generally heavier than PE plates, potentially increasing the burden during prolonged wear.
Brittleness: Ceramics have a certain brittleness, and cracking may occur if subjected to severe impact or drops, affecting protective performance. Once the ceramic layer is compromised, its ballistic capability is significantly reduced, especially in the impacted area.
Single-Hit Limitation: Many ceramic plates, after the first impact, will have their ceramic structure damaged around the hit point, reducing the protective capability of that area if hit again.
Material Principle: Made from high-hardness armor steel (such as AR500, AR600, etc.). Their ballistic principle relies on the steel plate's high hardness and toughness to directly block bullet penetration.
Advantages:
Cost-Effective: Steel plates are generally more affordable than PE or ceramic plates, making them an option for those on a limited budget.
Multi-Hit Capability: Steel plates can withstand multiple impacts without fragmenting easily.
Thin: Often thinner than other armor plate materials.
Disadvantages:
Extremely Heavy: They are the heaviest of all armor plate materials, posing a significant burden and fatigue during prolonged wear, severely impacting mobility.
Spalling Risk: Upon high-velocity impact, bullets striking steel plates can fragment and produce high-energy spall (fragments), which may scatter, causing secondary injury to the wearer (especially the chin and legs) and bystanders. Therefore, they must be used with an Anti-Spall Coating.
Backface Deformation (BFD): The impact force can cause severe deformation on the back of the steel plate. Even if not penetrated, this can lead to serious blunt force trauma to the wearer, potentially life-threatening.
Important Note: Given the potential risks associated with steel plates, we generally recommend prioritizing PE or ceramic armor plates if your budget allows.
Beyond ballistic performance, the shape, curve design, and thickness of an armor plate directly influence its wearing comfort and concealability.

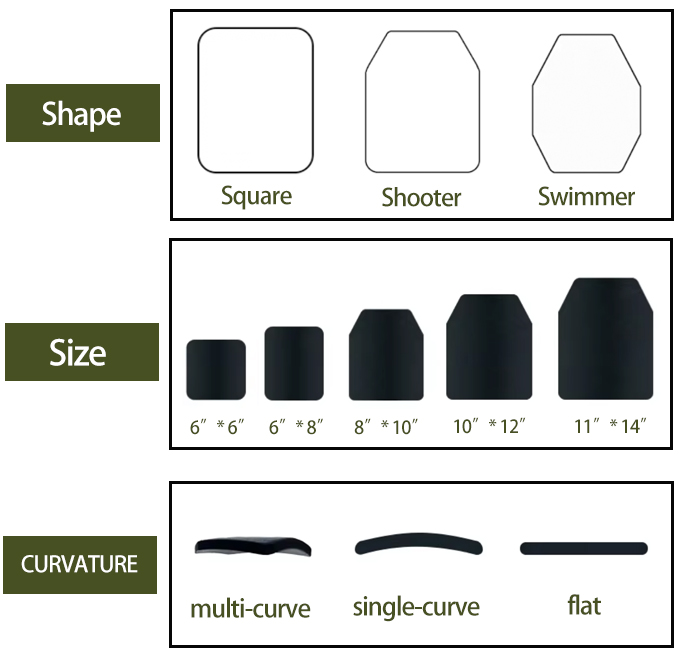

Armor plate shape directly affects movement, comfort, and coverage.
The SAPI cut is one of the most common armor plate shapes. It offers strong upper-body coverage and is widely compatible with tactical carriers.
Advantages:
Excellent protection coverage
Standardized fit
Widely used in military systems
Shooter-cut plates remove additional material around the shoulder area to improve weapon handling and arm movement.
Advantages:
Better shooting mobility
Improved weapon manipulation
More comfortable for active movement
Swimmer-cut plates further reduce side coverage to maximize flexibility and movement speed.
Advantages:
Greater mobility
Reduced weight
Better for high-movement operations
Limitations:
Reduced protective coverage
Customize the Armor plate cutting styles that suit you
The curve design of armor plates greatly affects comfort.
Single-curve plates feature one main vertical curve and are generally more affordable.
Advantages:
Lower cost
Simpler manufacturing
Basic ergonomic fit
Limitations:
Less comfortable for extended wear
Reduced body conformity
Multi-curve plates are designed to better follow the natural shape of the chest and torso.
Advantages:
Improved comfort
Better weight distribution
Reduced pressure points
More stable during movement
For users wearing armor for long periods, multi-curve plates are often worth the investment.
Customize the Armor plate Curve that suits you
In practical applications, choosing a supplier that can provide professional sizing guidance and customization services is equally important to ensure that tactical gear performs as intended.
Compared to suppliers that only offer standardized products, we focus on real-world usage scenarios and mission requirements, providing precise sizing recommendations and system-based configuration solutions to achieve an optimal balance between protection, stability, and comfort.
By partnering with Loop, clients benefit from fast pre-production samples and customized based on samples, a stable and efficient rapid delivery system, competitive pricing advantages, and timely access to trending industry product insights—enhancing overall procurement efficiency and market competitiveness.
At the same time, through multi-dimensional customization and support for bulk procurement, we help clients reduce trial-and-error costs, minimize procurement risks, and ensure efficient compatibility among different types of equipment.
Ultimately, what clients receive is not just individual products, but a complete equipment solution that truly fits operational needs and enhances overall mission performance.
Click here to contact us for Tactical Gear customized services.
Selecting an armor plate is not a "one-size-fits-all" decision. It's a process that requires comprehensive consideration of your specific use scenarios, potential threats, personal physical condition, and budget.
Handgun Threats (9mm, .44Mag, etc.): Prioritize NIJ Level IIIA soft armor vests or inserts. They are lightweight, concealable, and sufficient for these threats.
Standard Rifle Threats (7.62x51mm M80, etc.): At least NIJ Level III hard armor plates are needed. Weigh the balance between PE plates and ceramic plates in terms of weight, cost, and multi-hit capability. If weight-sensitive and budget allows, PE plates are an ideal choice.
Armor-Piercing Threats (30-06 M2 AP, etc.): You must choose NIJ Level IV hard armor plates, typically ceramic composite plates. This is the highest level of protection.
Urban Patrol/Daily Security: Lean towards lightweight, comfort, and concealability, such as Level IIIA soft armor or light Level III PE plates.
Outdoor/Field Operations: Besides ballistic protection, consider durability (resistance to drops, impacts). PE plates excel in this aspect.
Static Sentry/Heavy Fire Engagements: Can tolerate heavier protection; prioritize highest protection level (Level IV) ceramic plates.
Frequent Movement/Running: Lightweight is key, and PE plates will significantly reduce physical exertion.
If you need to wear it for extended periods (hours or even all day), choosing multi-curve, lightweight armor plates is crucial to minimize fatigue and discomfort.
Soft body armor is significantly more comfortable than hard armor plates.
Entry-Level/Limited Budget: Steel plates with anti-spall coating (consider their drawbacks carefully), or some basic Level III ceramic plates.
Mid-Range Budget/Value for Money: High-quality Level III PE plates or standard Level III ceramic plates.
No Budget Limit/Seeking Ultimate Performance: Top-tier lightweight Level III+ or IV PE/Ceramic composite plates.
Armor plates are only one part of a complete tactical system.
The plate must also work properly with:
Plate carriers
Tactical vests
Magazine pouches
Belts
Communication systems
Hydration systems
Poor compatibility may result in:
Unstable movement
Improper weight distribution
Reduced comfort
Lower mission efficiency
Modern buyers increasingly prioritize modular and compatible armor systems.
Q: What armor plate level do I need?
A: The right armor level depends on your mission and threat environment. NIJ Level III plates are designed to stop common rifle rounds, while Level IV plates provide protection against armor-piercing ammunition.
Q: Are ceramic armor plates better than steel plates?
A: Ceramic plates are generally lighter and offer better shock absorption, while steel plates are more durable and cost-effective. Many users prefer ceramic plates for improved comfort and reduced spall risk.
Q: What is the difference between Level III and Level IV armor?
A: Level III armor is rated to stop standard rifle threats such as 7.62mm rounds, while Level IV armor is designed to stop armor-piercing rifle rounds with higher penetration capability.
Q: How long do ballistic plates last?
A: Most ballistic plates have a service life of around 5–10 years, depending on the material, storage conditions, and usage environment.
Q: Are PE armor plates lighter?
A: Yes. PE (Polyethylene) armor plates are much lighter than traditional steel or ceramic plates, making them ideal for users who need enhanced mobility and comfort.
Q: What is multi-curve armor?
A: Multi-curve armor plates are shaped with multiple curves to better fit the human body, improving comfort, mobility, and weight distribution during extended wear.
Choosing the right armor plate requires balancing protection, comfort, mobility, durability, and mission requirements.
Steel, ceramic, polyethylene, and hybrid armor systems all have their own strengths, and no single solution is ideal for every application. Understanding protection levels, materials, weight, plate cuts, compatibility, and wear duration is the key to building a practical and effective tactical protection system.
For professional users, distributors, procurement teams, and tactical brands, selecting the correct armor plate system not only improves protection performance but also enhances operational efficiency and long-term user satisfaction.
